Urban Board¶
The Urban Board is a passive board that contains a selection of low-cost sensors for environmental monitoring, and a connector for a PM sensor. The measurements it takes depend on the version, but overall, it is capable of measurements such as:
- Temperature and Relative Humidity
- Barometric Pressure
- Noise Level and Frequency Spectrum
- Light (including UV-index after the 2.2 version)
- Air Quality Indicators (depending on the version)
- PM

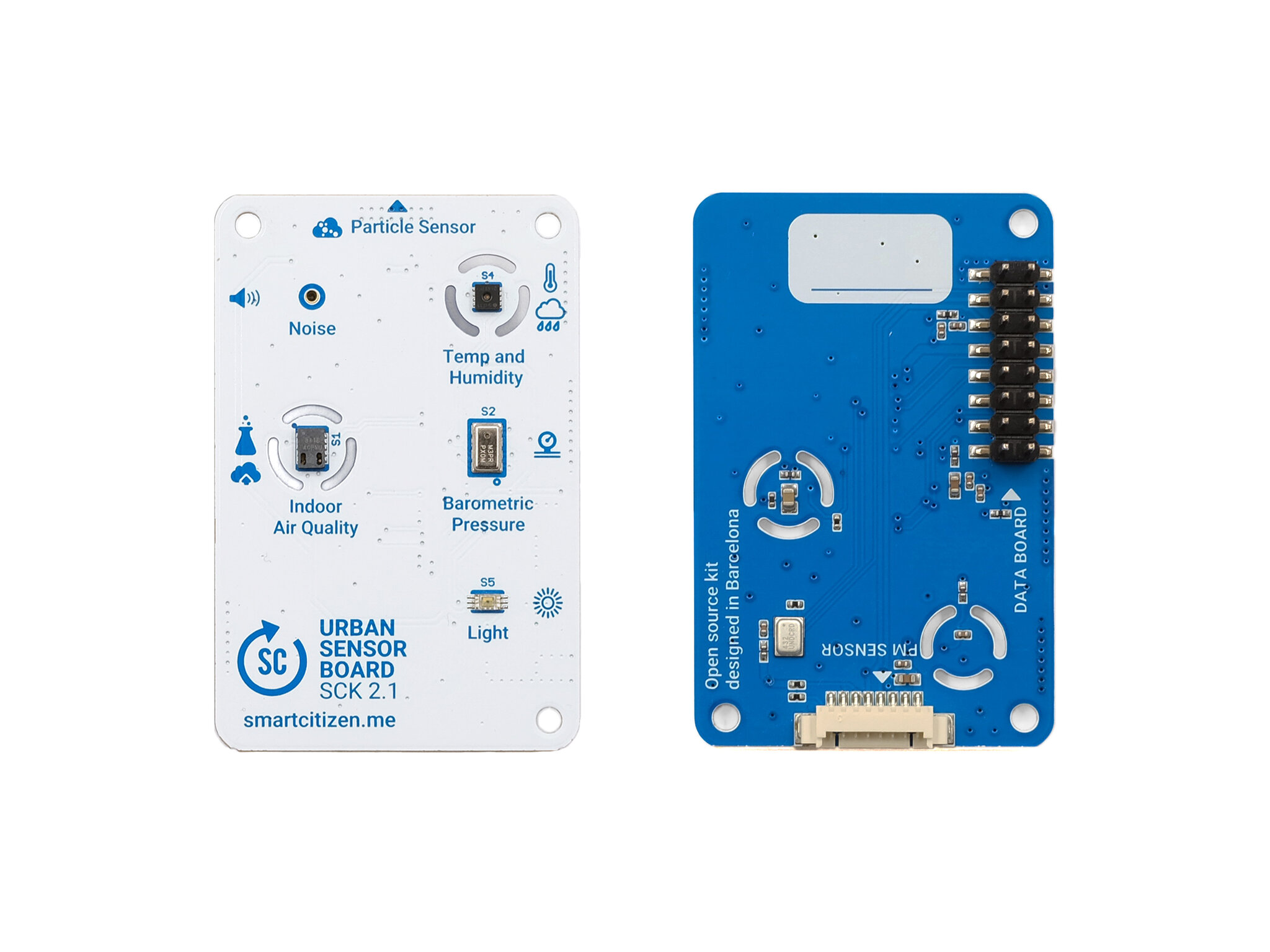

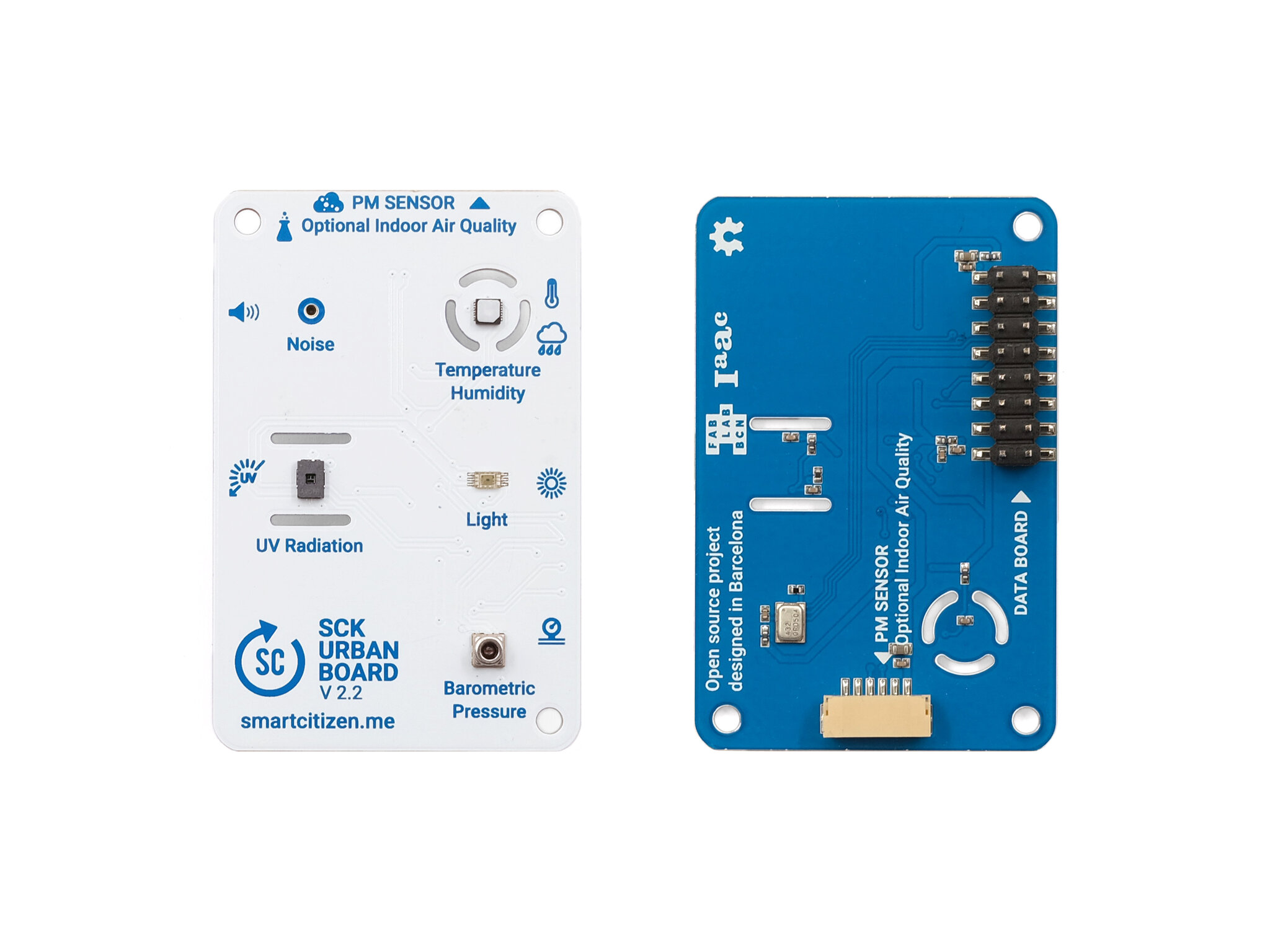

The Urban Board has undergone several modifications throughout its development, and its current version is the V2.3. Below you can see all versions:
Assembly¶
The Urban Board connects to the Data Board with the connector labeled SENSOR BOARD:
PM sensor connection¶
Custom cable
Note that the PM cable, both for PMS5003 or the SEN5X, are custom made.
Sensors¶
| Measurement | Units | Sensor |
|---|---|---|
| Air temperature | ºC | Sensirion SHT-31 |
| Relative Humidity | % REL | Sensirion SHT-31 |
| Noise level | dBA, dBC or dBZ | Invensense ICS-434342 |
| Ambient light | lux | Rohm BH1721FVC |
| Barometric pressure | kPa | NXP MPL3115A26S |
| UV-A, B, C | uW/cm2 | AMS AS7311 |
| PM1, PM2.5, PM4 and PM10 | µg/m3 | Sensirion SEN5X |
| NOx Index, VOCs Index (Optional) | - | Sensirion SEN54, 55 |
| Measurement | Units | Sensor |
|---|---|---|
| Air temperature | ºC | Sensirion SHT-31 |
| Relative Humidity | % REL | Sensirion SHT-31 |
| Noise level | dBA, dBC or dBZ | Invensense ICS-434342 |
| Ambient light | lux | Rohm BH1721FVC |
| Barometric pressure | kPa | ST LPS33K |
| UV-A, B, C | uW/cm2 | AMS AS7311 |
| PM1, PM2.5, PM4 and PM10 | µg/m3 | Sensirion SEN5X |
| NOx Index, VOCs Index (Optional) | - | Sensirion SEN54, 55 |
| Measurement | Units | Sensor |
|---|---|---|
| Air Temperature | ºC | Sensirion SHT-31 |
| Relative Humidity | % REL | Sensirion SHT-31 |
| Noise Level and Spectrum | dBA, dBC or dBZ | Invensense ICS-43432 |
| Ambient Light | Lux | Rohm BH1721FVC |
| Barometric pressure and AMSL | kPa and Meters | NXP MPL3115A2 |
| eCO2 and TVOC | ppm/ppb | AMS CCS811 |
| PM1, PM2.5 and PM10 | µg/m3 | Plantower PMS5003 |
Design files¶
You can find all the design files for the different versions of the Urban Board in the hardware repository.
Previous versions
Previous versions of the SCK, are in their respective repositories:
- Smart Citizen Kit 2.0: https://github.com/fablabbcn/smartcitizen-kit-20
- Smart Citizen Kit 1.5: https://github.com/fablabbcn/smartcitizen-kit-15
